Tuesday, May 30, 2017

Programmable Alarm Trip with Intrinsically-Safe (IS) Field Connections Wins Award

process controller programmable limit alarm with intrinsically safe field connections
Award winning SPA2IS
Courtesy Moore Industries
Moore Industries won the Control Engineering 2017 Engineers’ Choice Awards for Process Safety, Intrinsic Safety category with its innovative SPA2IS programmable alarm product. The award winning product is part of the company's extensive line of process controllers, alarms, and related devices.

The SPA2IS provides a versatile range of functionality and accepts inputs that include current, voltage, RTD, thermocouple, resistance, and millivolt signals. The device features universal power input that allows operation on AC or DC sources. The intrinsically safe field connections negate the need for IS barriers, plus the integrated transmitter excitation can be used to power an intrinsically safe loop.

There is much more to learn about the Moore Industries SPA2IS. A datasheet for the unit is provided below. Share your process controller and alarm requirements and challenges with process control specialists, combining your own process knowledge and experience with their product application expertise to develop effective solutions.


Thursday, May 18, 2017

Thermal Flow Measurement for Gases

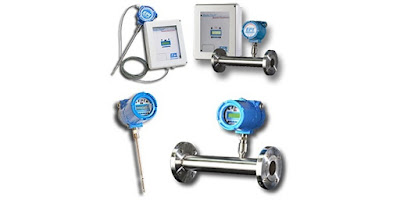

thermal mass flow meters for gases insertion and in-line
Installation variants of thermal flow meters
Thermal mass flow measurement technology has been used in industrial process measurement and control applications for many years. The basic operation involves measuring flow in relation to its heat dissipating effect on a temperature sensor. Higher mass flow produces a higher rate of heat transfer.

The mass flow measurement instruments are very popular for several reasons. They have no moving parts, have a fairly unobstructed flow path, are accurate over a wide range of flow rates, calculate mass flow rather than volume, measure flow in large or small piping systems, and do not need temperature or pressure compensation. While most thermal flow meters are used to measure flowing gas, some also measure flowing liquids.

Thermal mass flow meters are cost effective and accurate making it an excellent choice for a wide variety of gas flow applications.

The technology measures the amount of heat required to maintain a sensor at a reference temperature, offsetting the cooling effect of the mass flow over the sensor. The technology is well suited for installations requiring the measurement of low pressure gases where the fluid components are known and remain constant. Thermal mass flow measurement is also employed effectively in a number of other scenarios.

Potential advantages of thermal mass flow technology for industrial process measurement and control:
  • True mass flow reading using a single instrument
  • No significant impact on measurement from fluid pressure or temperature
  • Comparative cost is moderate
  • No moving parts
  • Minimal restriction of flow introduced by sensor
Thermal mass flow sensors have attributes making them very suitable for a family of applications. Like all measurement technologies, there are also areas of caution in their application. Any measurement technology must be properly applied in order to obtain reliable results. Talk to a sales engineer about your flow measurement ideas and applications. Combining your process expertise with the knowledge of a product application specialist will produce good results.

Wednesday, May 10, 2017

Application of Thermo Fisher Density and Level Instruments



The video, produced by Thermo Fisher Scientific, shows how an integration of flow, level, and density measurements is used to regulate the feed and operation of a coke production system. The integration of several instruments and technologies serves to provide operators with a continuous stream of accurate information about the product level, foam interface, and material content at various points in the drums. Closely monitoring the process enables best use of available drum space and control of the process.

Determining and applying the most effective measurement technology for any process is a key element of achieving optimum output. Share your measurement challenges with instrumentation specialists, combining your own process knowledge and experience with their product application expertise to develop effective solutions.

Wednesday, May 3, 2017

Multiple Generator Condition Monitoring Functions in a Customized Unit

gas cooled generator monitoring unit
Multi-parameter generator monitor
Courtesy E/One Utility Systems
Electric power generation involves enormous investment in fixed equipment operating at conditions requiring precision control of many variables. The availability of accurate real-time generator monitoring information can be the key element in maintaining precision equipment in good operating condition and avoiding downtime caused by failure.

E/One Utility Systems designs and manufactures a generator monitoring system combining multiple functions into a consolidated unit, fully engineered and coordinated for each application. Each customer can choose to incorporate functions as needed for their installation.
  • Generator Auxiliary System
  • Generator Gas Analyzer
  • Generator Condition Monitor
  • Generator Gas Dryer
  • Auxiliary Systems
This flexible and cost efficient approach to gas monitoring and control systems for electric power generators capitalizes on the use of pre-engineered modules to reduce installation and on-site engineering burden.

More information is provided in the document below. Share your power generator monitoring and control challenges with product specialists and work together to develop effective solutions.
